| محل منبع: | چین |
|---|---|
| نام تجاری: | OPTFOCUS |
| گواهی: | CE |
| شماره مدل: | OFSX624-CWU |
| مقدار حداقل تعداد سفارش: | 100 عدد |
| قیمت: | USD 27.5~31 / piece |
| جزئیات بسته بندی: | 1 قطعه / جعبه |
| زمان تحویل: | 5-10 روز ، به مقدار بستگی دارد |
| شرایط پرداخت: | L / C ، T / T ، Western Union ، Paypal و غیره |
| قابلیت ارائه: | 50000 قطعه / ماه |
| فیبر اتصال دهنده: | کانکتور SC / UPC (SC / APC اختیاری) | رابط داده پیوند پایین: | 3 * 10/100 مگابیت در ثانیه و 1 * 10/100 / 1000M مذاکره خودکار رابط اترنت ، رابط RJ45 |
|---|---|---|---|
| وای فای: | 2.4G | بندر CATV: | آره |
| دمای کارکرد: | -5 ～ + 55 | بعد، ابعاد، اندازه: | 188 * 125 * 35 میلی متر |

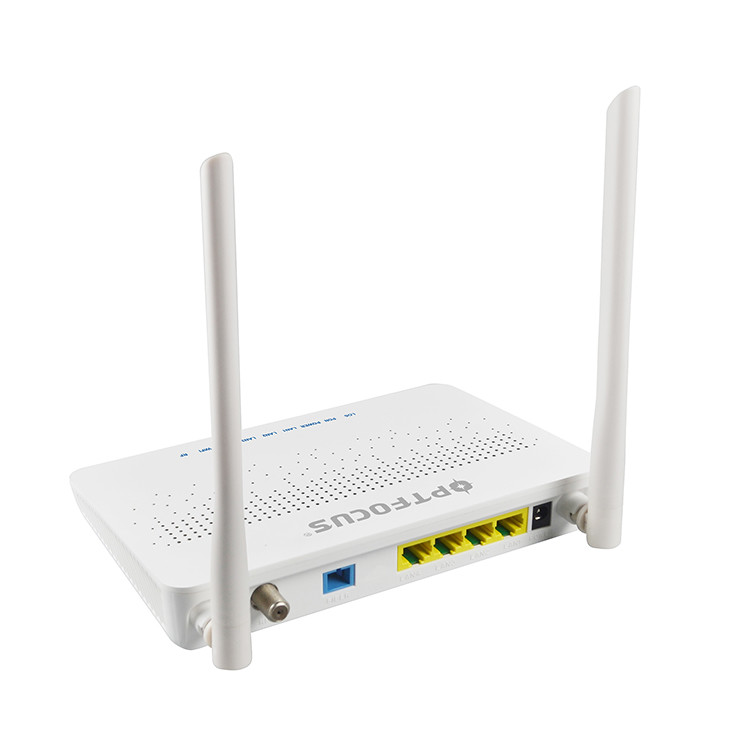

Hot selling RF CATV ONU 4LAN ethernet port dual mode wifi onu epon gpon
Description:
1GE+3FE Ethernet ports with Wifi USB WDM CATV XPON ONU for FTTH solution
OFSX624-CWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU -T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) |
188*125*35mm(mainframe) |
| Weight | 0.6Kg(mainframe) |
WIFI characteristics
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
CATV Technical features
| Tech features | description |
| Optical wavelength | 1540~1560nm |
| Optical input range | 0~-15 DBm |
| Optical return loss | ≥45 DB |
| Bandwidth | 45~1000 MHz |
| Flatness | 士 1 DB |
| RF output level | ≥72 dBuv |
| AGC control range | 0~-14 DBm |
| RF Output return loss | ≥14 DB |
| Output impedance | 75Ω |
| CNR | ≥50 DB |
| CTB | ≥60 DB |
| CSO | ≥60 DB |
Solutions
Related products
FAQ
1. Can i have a sample before bulk order?
Yes, we support to provide sample for you to test our product quality before your bulk order.
2. Can I use our own logo and label?
Yes, we could provide OEM service and manufacture the products with your own label.
3. What is the delivery time?
For usual products. We keep the stock, could send 1-3 days after the PO. For large quantities and special products, please check the delivery time with our sales representative.
