| محل منبع: | گوانگدونگ ، چین |
|---|---|
| نام تجاری: | OPTFOCUS |
| گواهی: | ISO9001 ANATEL CE |
| شماره مدل: | OFSX624-VWU |
| مقدار حداقل تعداد سفارش: | 1 قطعه |
| قیمت: | USD15-25/UNIT EXW CHINA |
| جزئیات بسته بندی: | 40 قطعه / جعبه |
| زمان تحویل: | 10 روز کاری |
| شرایط پرداخت: | L / C ، D / A ، T / T ، D / P ، Western Union، MoneyGram |
| قابلیت ارائه: | 50000 قطعه در هر ماه |
| رابط لینک بالا: | 1 رابط XPON ， SC تک حالت تک فیبر RX 2.488 گیگابایت بر ثانیه و TX 1.244 گیگابایت بر ثانیه (GPON) ، نر | حالت: | XPON |
|---|---|---|---|
| قدرت نوری: | 0 ~ 4 dBm | حساسیت: | -28 دسی بل در ثانیه |
| نشانگر LED: | 9 عدد | دمای کارکرد: | -5 ～ + 55 |
| ابعاد （میلی متر: | 188 * 125 * 35 میلی متر （پردازنده مرکزی | ضمانتنامه: | 1 سال |
| کلید واژه ها: | zte f660 ont |
Wholesale ftth 4lan tel with big covering area wifi ONU with wifi hybird GEPON similar to zte f660 ont

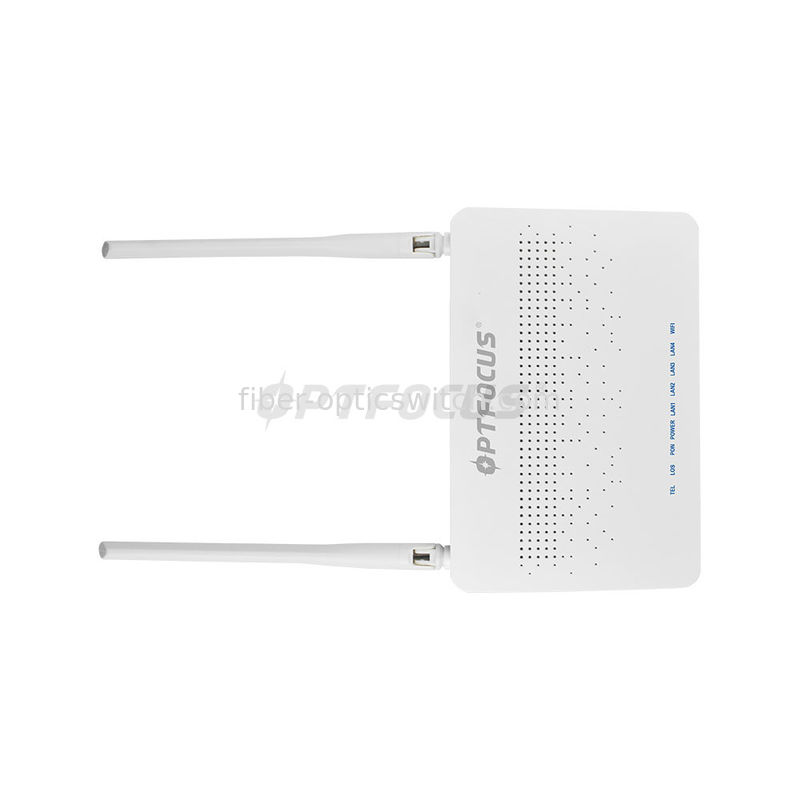

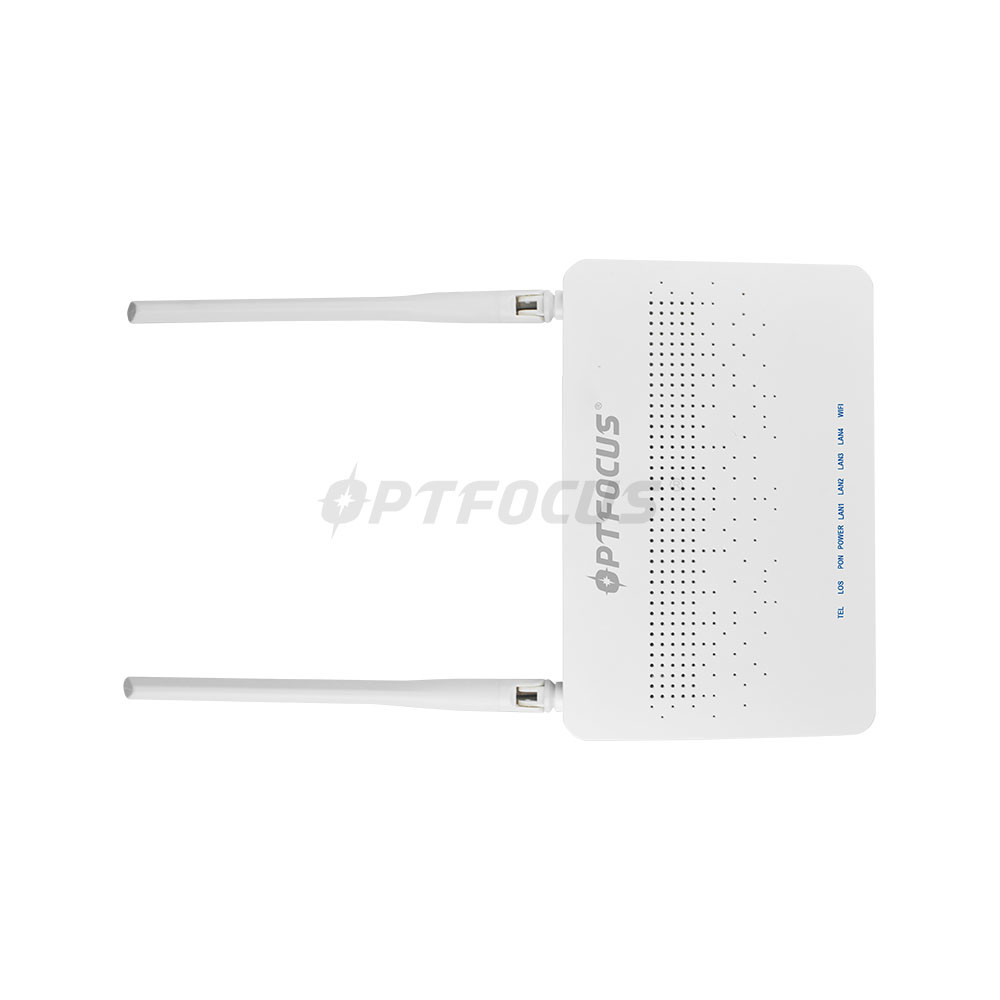

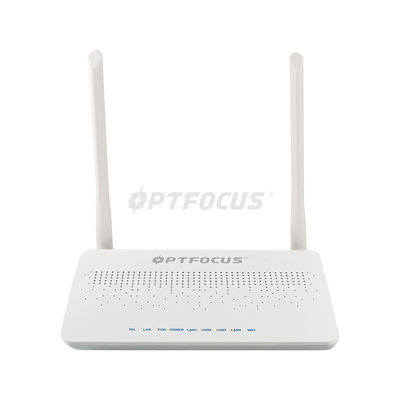

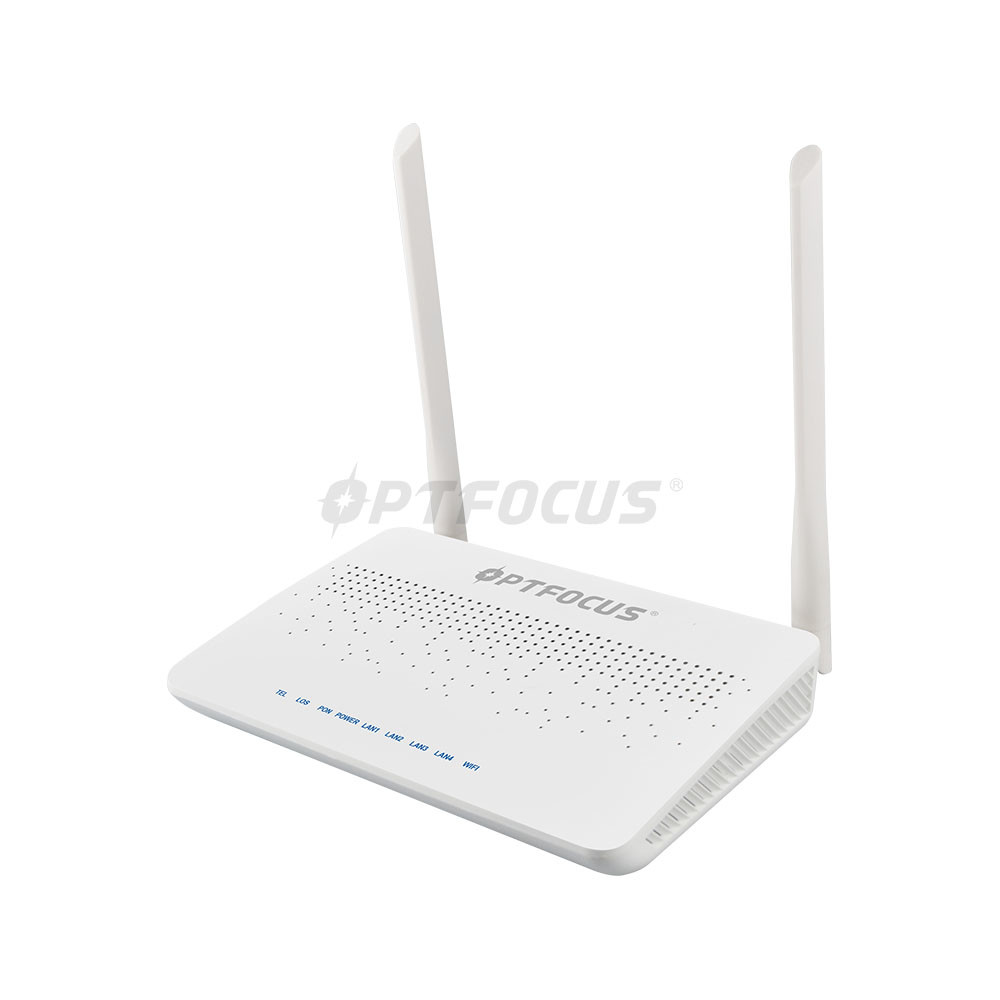

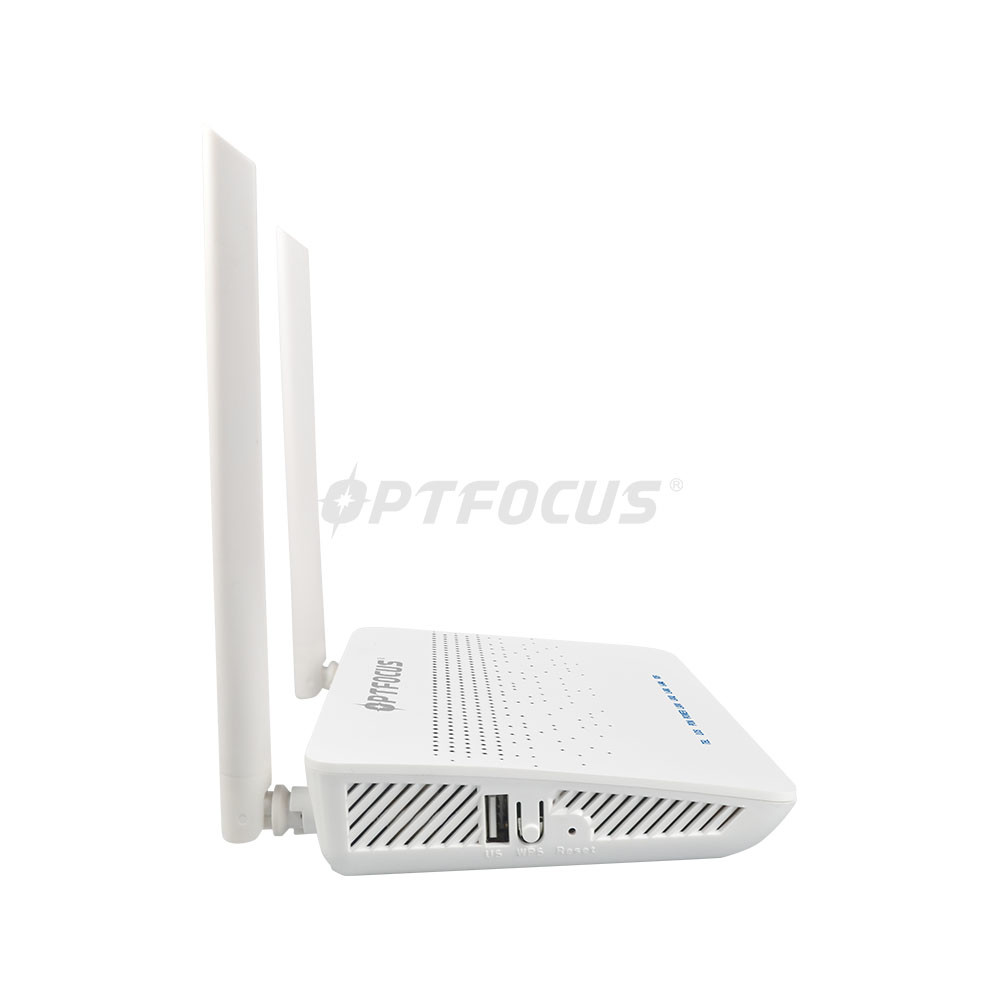

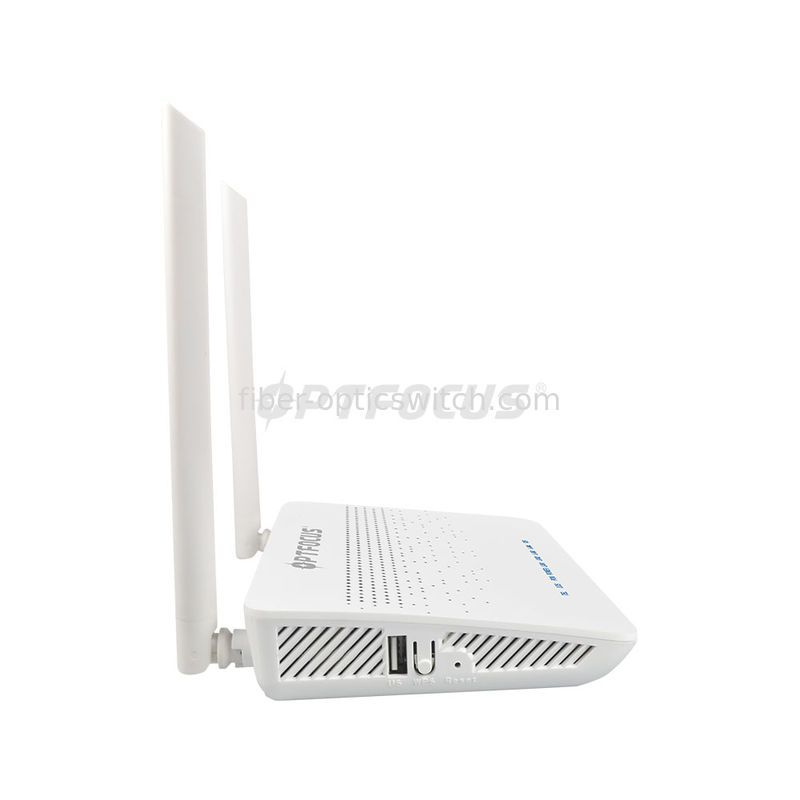

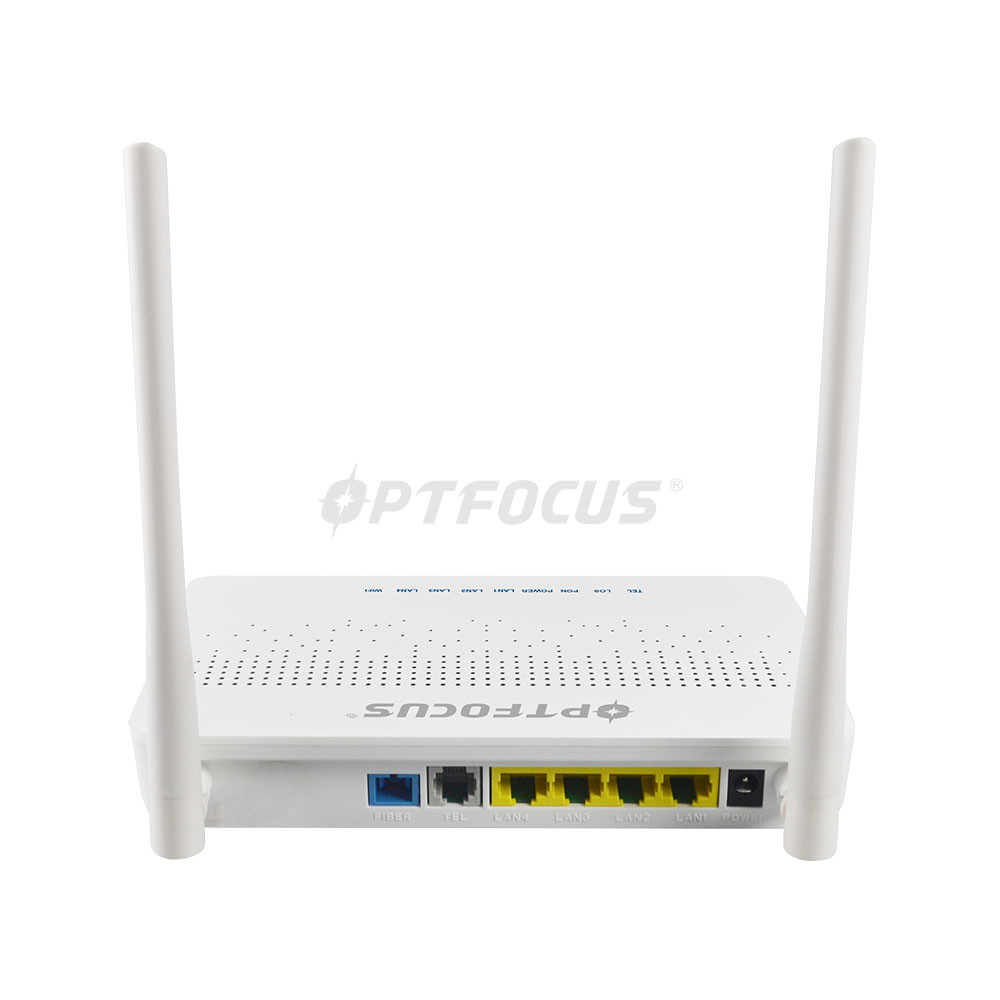

OFSX624-VWU
1GE+3FE Ethernet ports with Wifi USB VOIP XPON ONU for FTTH solution
Description:
OFSX624-VWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
BASIC CHARACTERISTICS:
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |

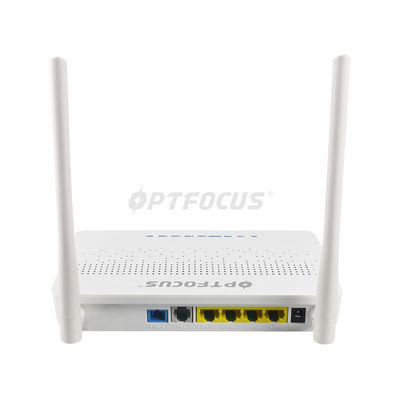

| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |

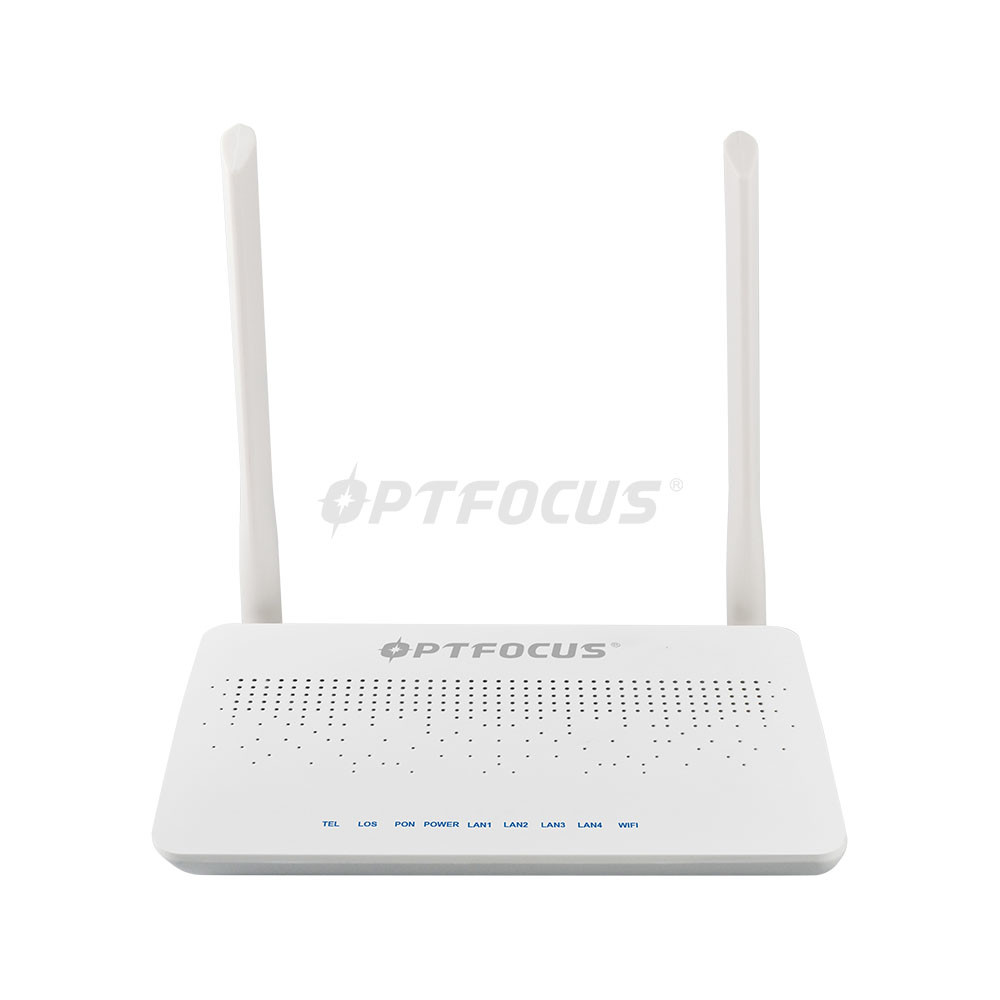

| Indicator LED | 9 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS:
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
VOIP TECHNICAL FEATURE:
| Tech features | description |
| Voltage and Current Monitoring | The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC |
